Addressing the Challenge
The increasing demand for sustainable building materials like Glulam, CLT, LVL & solid timber beams has revolutionized construction practices. However, handling these large, heavy timber sections presents a logistical challenge.

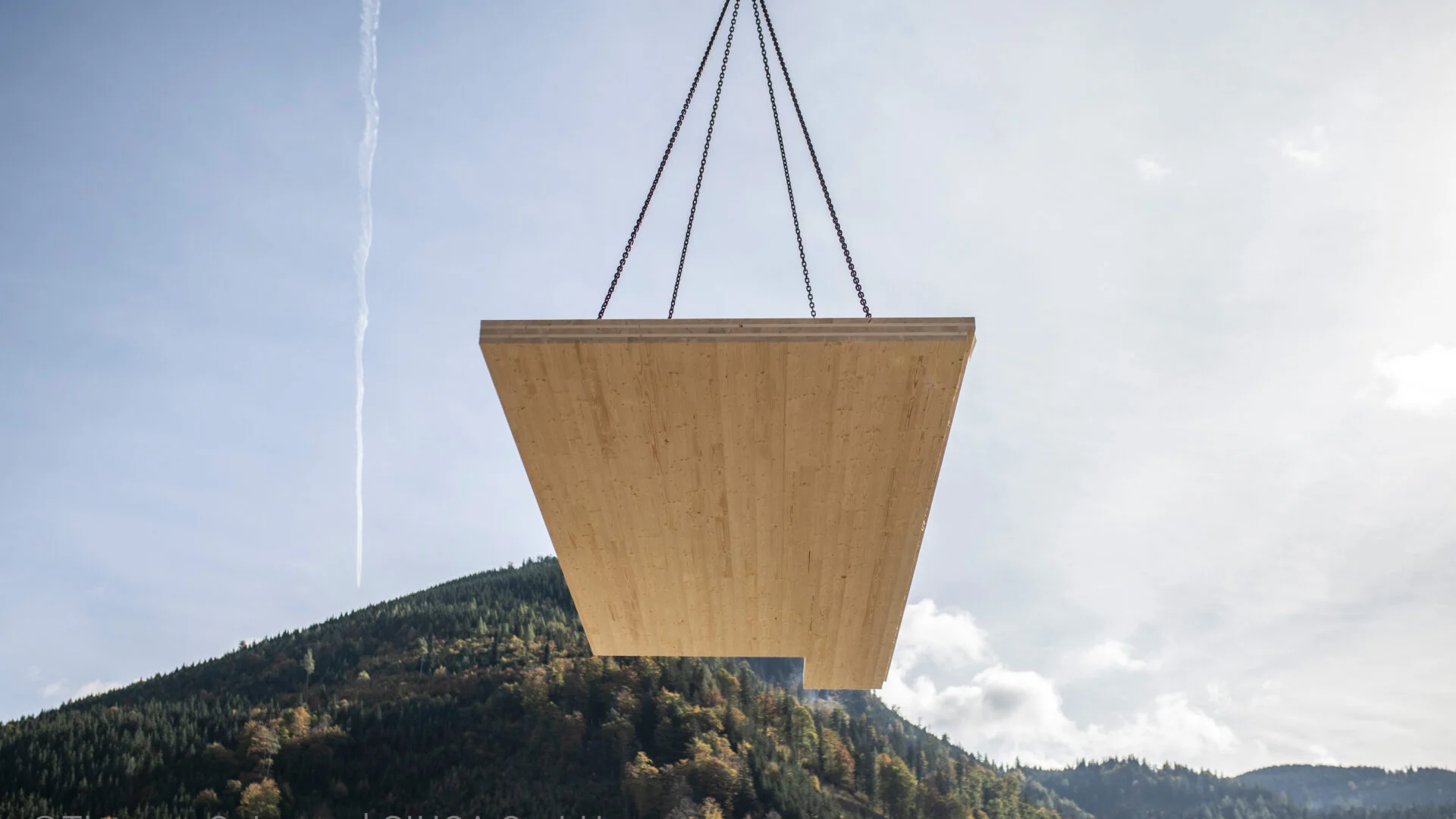

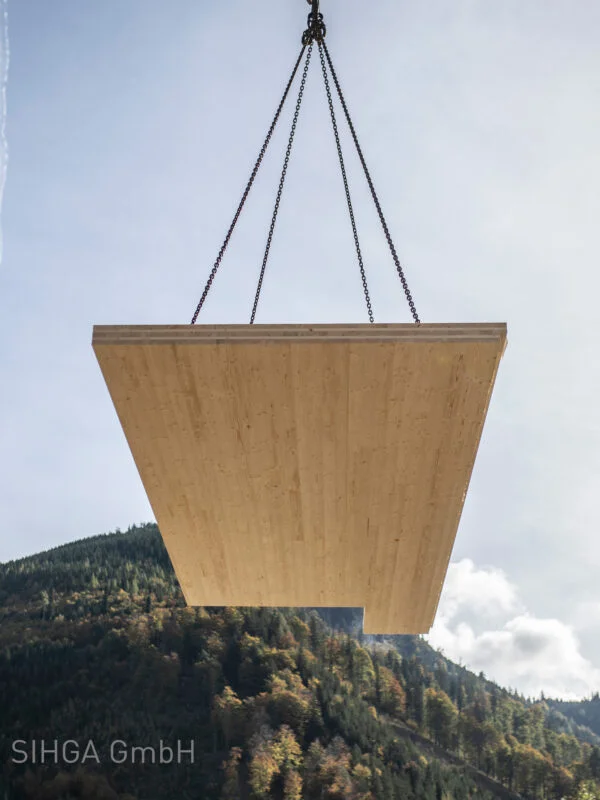

Currently the most common way to move and install these large sections is by using slings, which compromises safety, efficiency, and the material’s visual integrity. These slings are often single use, raising concerns around safety & single use environmental impact. Another option has been to attach hooks or fastening points to the timber, but this can potentially damage the surface finish and may be visible within the final install. The Pick alleviates these issues by offering a fast, efficient, safe and reusable lifting system.

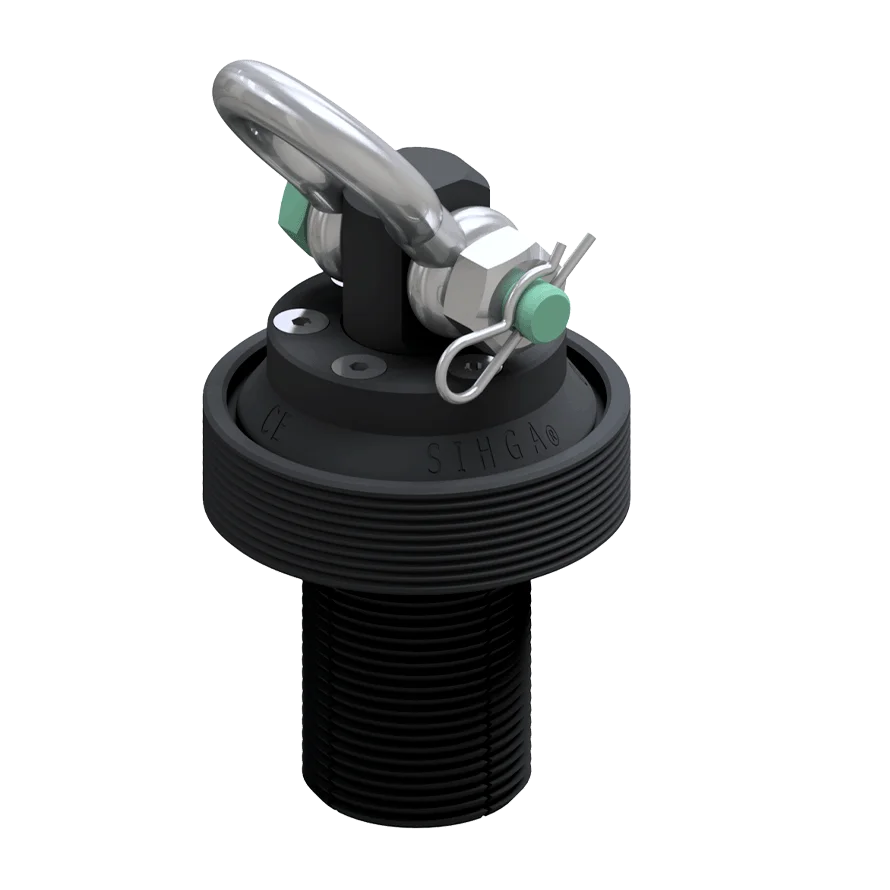

Why Choose SIHGA® Pick?
Engineered with precision from high-quality steel, the Pick is designed for a service life of up to 16,000 load cycles, significantly reducing the need for frequent replacements.
Each fastening point supports up to 1250kg, which can be increased to 2400kg by using the SIHGA® Pick Max®
SIHGA Pick® stands out due to its:
• Versatility: The system accommodates a variety of timber sizes and configurations, adapting to different project needs.
• Reusability: Unlike single-use slings and disposable screws, the Pick delivers lasting value with up to 16,000 load cycles – providing a smarter, more sustainable solution.
• Material Preservation: By eliminating the need for hooks or other fastening methods that could potentially damage the timber, this solution helps maintain the quality and integrity of the wood.
• Efficiency: A quicker setup and secure attachment greatly reduces the time and labour involved in moving and installing heavy materials resulting in higher efficiency.
What are the key features?
The SIHGA Pick offers several key features that enhance its performance and reliability:
- High Load Capacity: Each fastening point supports up to 1250kg, making it suitable for lifting heavy timber elements like Glulam, CLT, and solid timber.

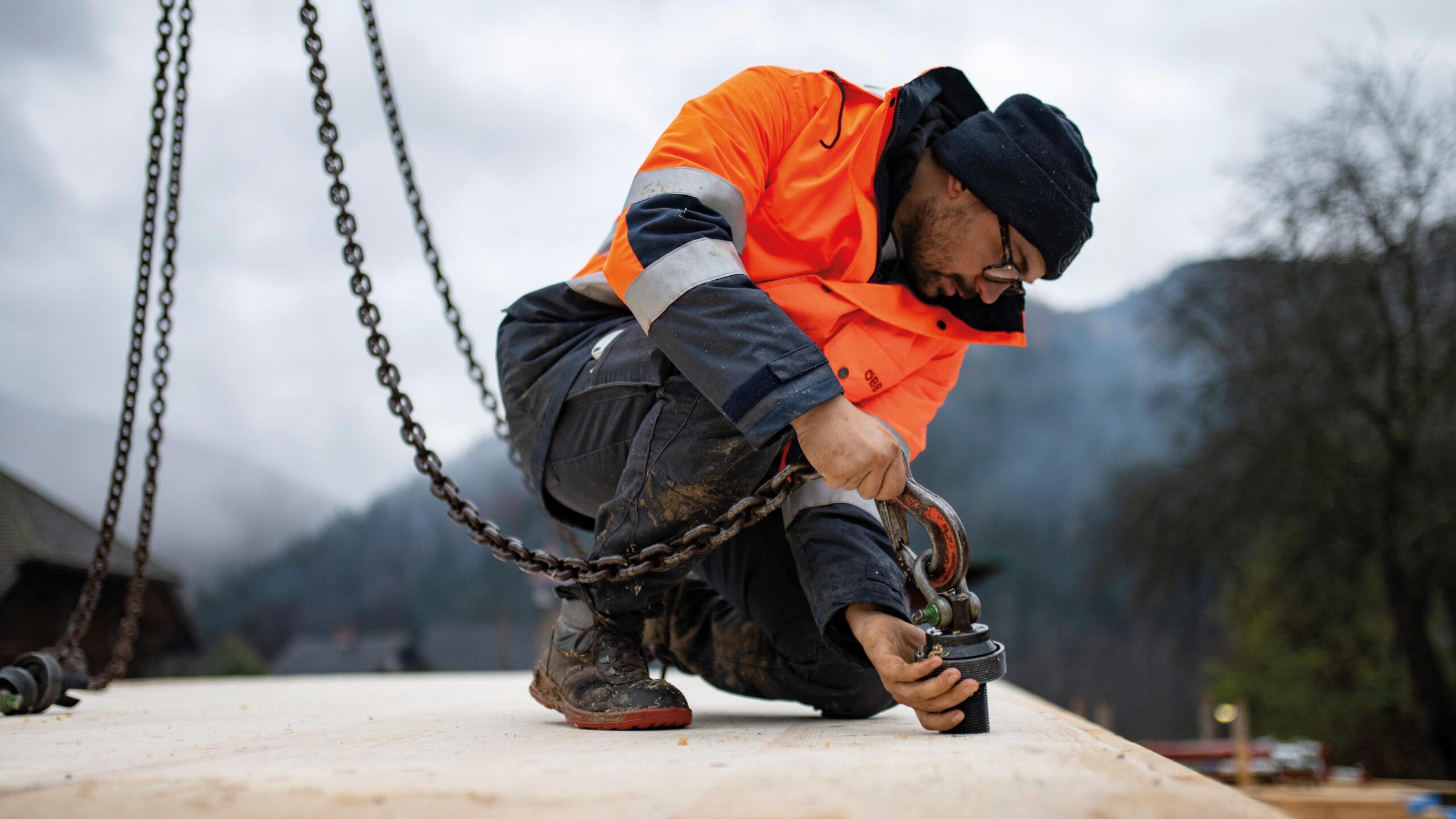

- Simple Installation: Installation is straight forward, requiring drilling a blind hole with a diameter of 50mm and a depth of 70mm. This preserves the timber’s visible surface quality without needing fastening screws.
- Versatility: The Pick can be applied to various timber orientations – end face, panel side, or transverse side – accommodating diverse lifting scenarios.
- Long-Term Reliability: Designed for durability, the Pick can endure up to 16,000 load cycles, minimizing the frequency of inspections and replacements.
The SIHGA® Pick streamlines timber handling by enabling faster, safer workflow, reducing labour and minimizing waste — delivering maximum operational efficiency and environmental sustainability.
Want to learn more about using SIHGA® Pick? Get in touch with our technical team.
Chris Wright
Technical Sales Representative
I’m Chris, Technical Sales Representative for SIHGA UK. From the early planning stages to on-site installation, I’m here to help with technical guidance, product recommendations and tailored support for your project. We believe that timber is the future of sustainable construction – and we’re here to help you build smarter, stronger structures every step of the way. Let’s build the future of timber construction – together.
