LamellenFix®

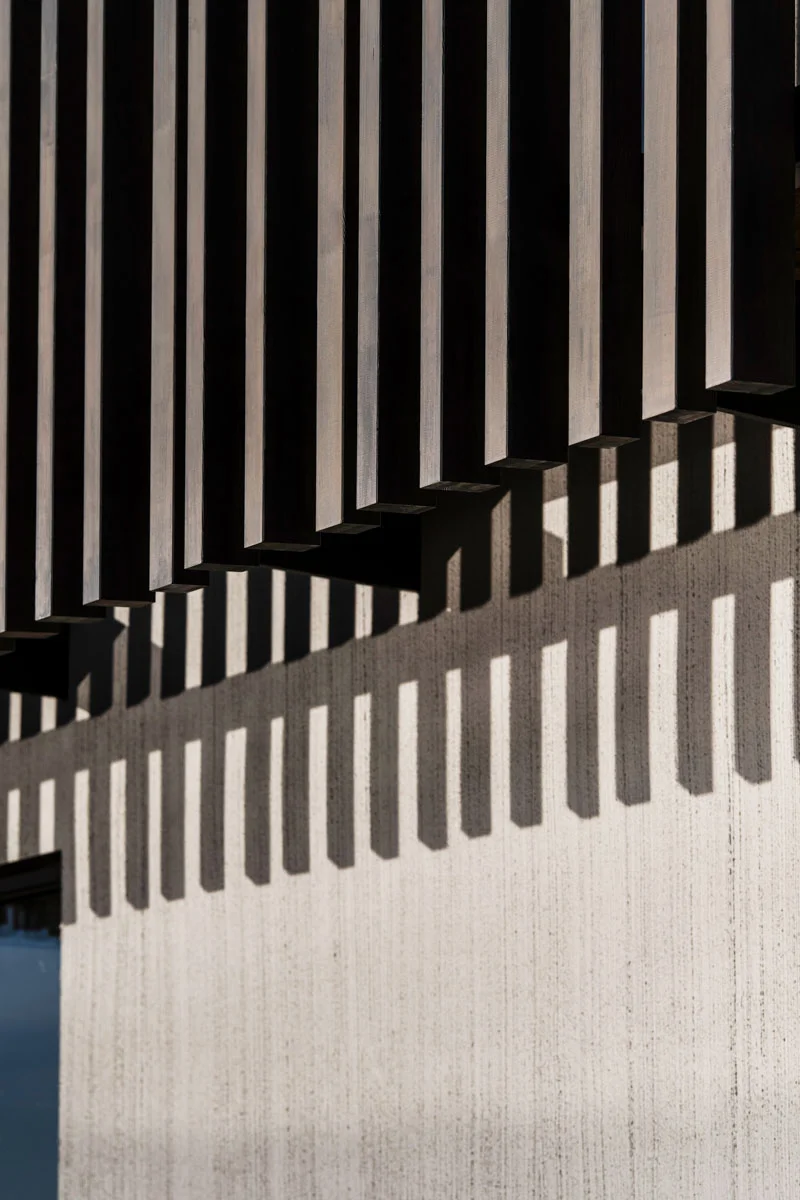

LamellenFix® is a fixing system specifically designed for the secret-fixing of timber louvres and fins on various façade substrates. This quick and visually appealing way to mount timber slats was developed, patented, and manufactured in Austria, by SIHGA. The innovative fixing system meets the highest European quality standards and offers excellent durability and stability for demanding architectural projects.

---

How does it work?

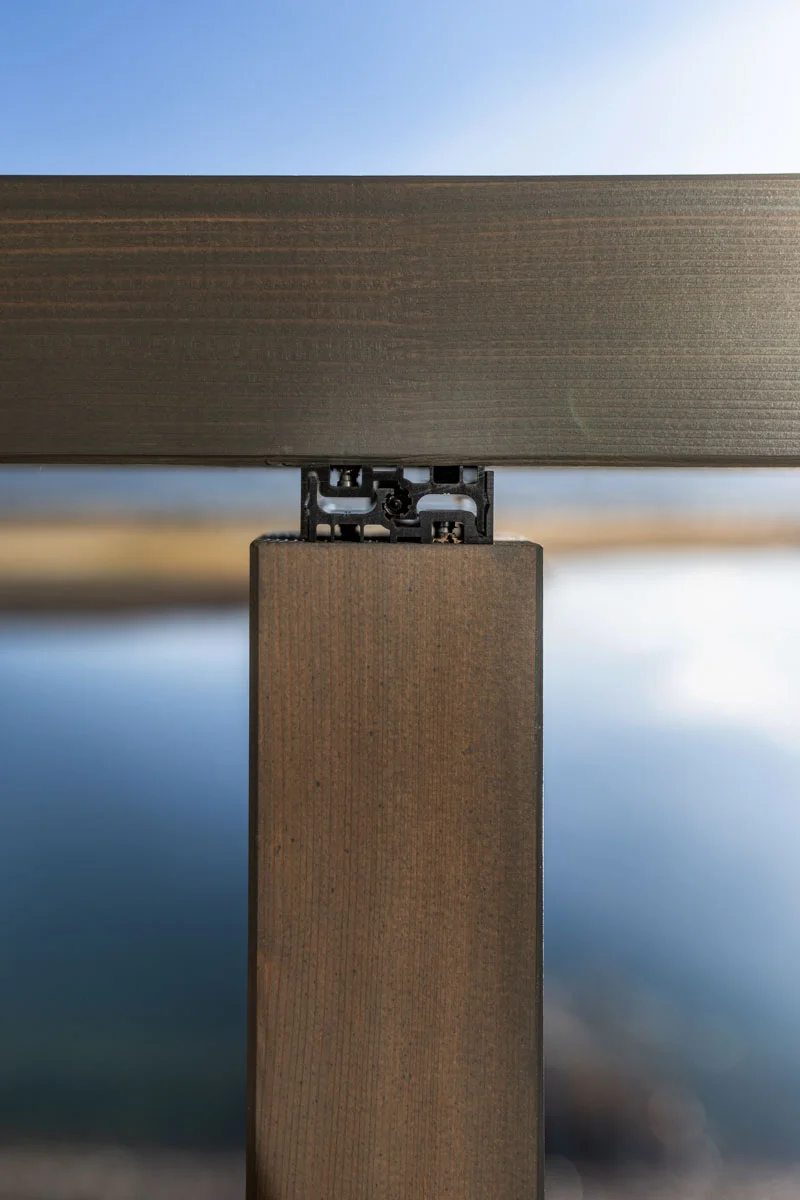

The system is designed with two identical parts that can be pre-assembled on the timber slat and the substrate. This pre-assembly ensures accuracy and reduces potential errors during fitting. The connectors are secured using a locking screw, which provides equal load distribution across the mounted fins. This guarantees the stability and structural integrity of the system, especially in larger-scale applications.

Designed and manufactured in Austria from anodised aluminium, the LamellenFix® system is rust-free, dimensionally stable, and built to last. This ensures the system remains functional and aesthetically pleasing throughout its service life, even in challenging weather conditions. Due to its robust and reliable design, LamellenFix® is particularly suited for commercial projects that require large timber fins over 60x80mm offering a secure, aesthetically pleasing, and structurally sound secret-fixing solution.

---

What are the key benefits?

• Secret-fix for fins and louvres
• Engineered solution with calculations
• Quick installation
• Optimised for fins and louvres over 40x65mm
• Off the shelf solution

---

Compatible timbers

Today, Russwood offers a variety of timber options suitable for use as fins and louvres with LamellenFix®:

• Abodo® Vulcan Vertical Grain (Thermally modified Radiata Pine): Cut from laminated block to bespoke specifications – commonly 192mm or 146mm wide × 47 / 63 / 72mm thick – ideal for bespoke fin machining. Larger and custom sizes available on request.
• Thermopine® (Thermally modified Scots Pine): Supplied in various widths and thicknesses to suit a range of applications. Common sizes include 42 / 55 / 66mm thick × 92 / 117 / 142 / 185mm wide. Custom sizes available on request.
• Lunawood Collection (Thermally modified Nordic Pine and Spruce) : Luna SHP stock profiles, ideal for smaller fins with short lead times. Available in 68 × 42mm, 92 × 42mm and 142 × 42mm sections.
• Accoya® (modified timber) Fin sections available in 42mm, 56mm or 68mm thicknesses × 120 / 145 / 192 / 240mm widths.
• Scotlarch®: Available in 150 × 63mm section, offering a robust option for natural, characterful fins.

---

Fixings for substrate types

• For fixing to timber, use TeFix®
• For fixing to concrete substrates, use SIHGA® concrete anchor (A4)
• For fixing to masonry, use BeziFix® SR II
• For fixing to steel (up to 4mm), use SIHGA® tapping screw

---
