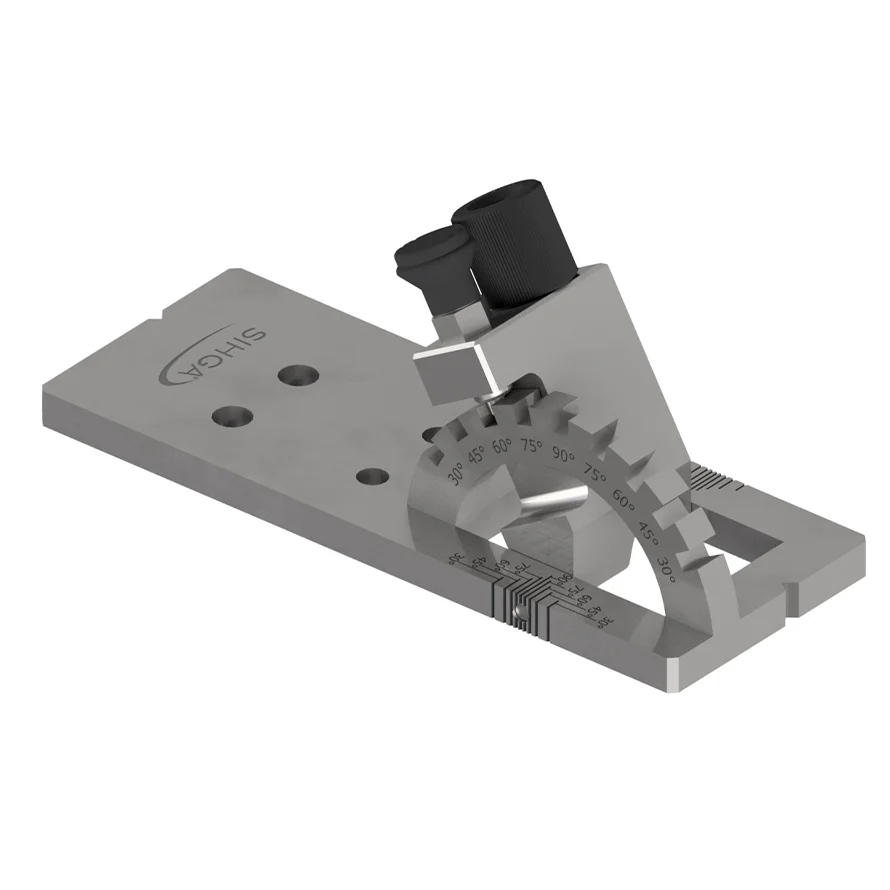

Winkelix® X+

Product Details

Variable drilling and screw template for GoFix® X+. One template for all common angles, including adapter tube for GoFix® X+ ø 8.0 mm.
Adjustable from 30° – 90° in 15° increments, also in mirrored arrangement. For almost any application in timber construction for drilling and screwdriving work.
Suitable for different screw diameters. With the different adapter tubes, screw diameters of GoFix® X+ with 6.5 mm, 8.0 mm and 10 mm diameters, as well as the 8.0 mm diameter GoFix® ZS.
Can also be used as a drilling template. The 6.0 mm diameter adapter tube can be used to holes for the screw connections can be pre-drilled at the factory.
Adapter tubes made of hardened tool steel. Promise high wear resistance.
Winkelix^® X+ base body made of high-quality stainless steel. For a long service life and elegant appearance.
Developed and manufactured in Austria. Highest European quality and added value.

SIHGA® TIP

The 150 mm long DUO-Bit TX 30, 40 or 50 is required as an accessory.
