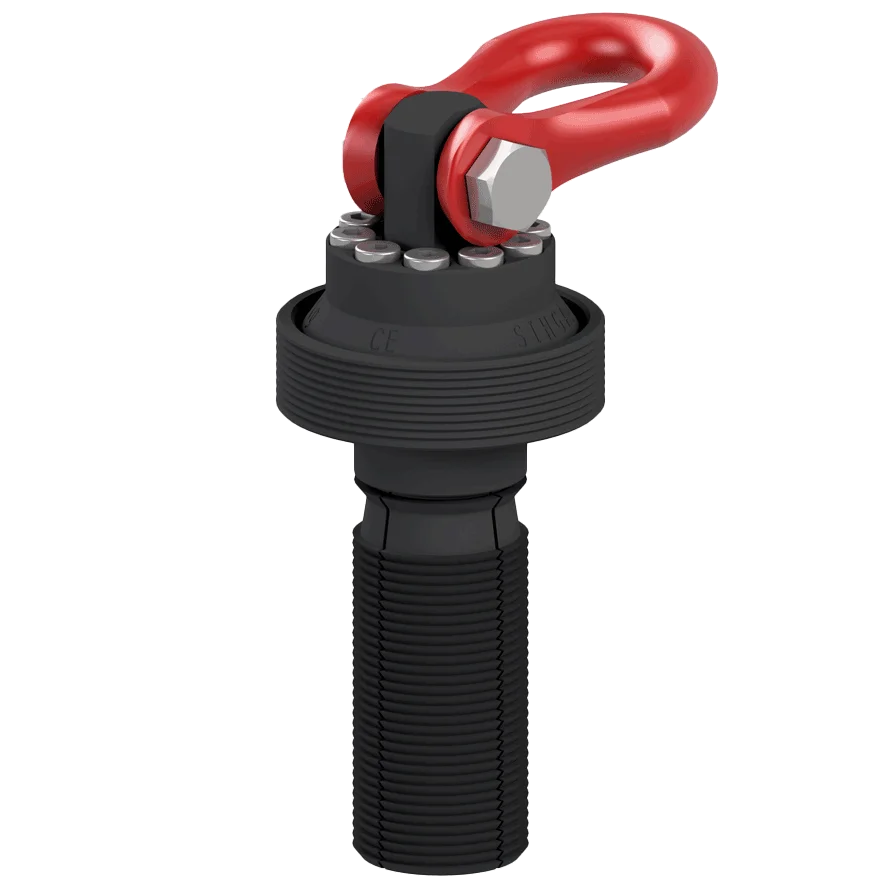

Pick Max®

High-quality and durable load handling device.

View more details

Product Details

Load attachment for lifting glued laminated timber, glued cross laminate timber and solid timber. Capacity up to 2400 kg per fastening point.
Made, developed and patented in Austria from high-quality steel. Local quality and reliability, Q&T steel for permanent, robust long life lift.
Pick Max Drill HMB can be combined with the IdeFix® Drill Bell IBG. Simple, safe adherence to the drilling depth, exact drilling under 90°.
Safe and simple attachment. Attached in a few simple steps, no alignment of the sling required.
Versatile application. Face side (from panel thickness of 100 mm), panel side or cross-laminated side for beams of all types.
Low-maintenance. Annual inspection possible together with personal protective equipment in accordance with the Work Equipment Ordinance.
Long service life. 16,000 load cycles.
Safety tested – accompanied by TÜV. Avoidance of safety risks, diverse application areas, and ambient conditions tested.

Advantages

Payload up to 2400 kg per lashing
Versatile use: on the face side, panel side or cross-laminated side for beams of all types
The visual quality of the surfaces is not damaged, no fastening screws required
Easy and secure attachment, no alignment required
Tested safety – accompanied by the TÜV

Instructions for use

The Pick Max® wedges itself so solidly into the borehole that 2,400 kg of payload can be lifted per attachment point.

SIHGA Pick Max® Annual Servicing Information

SIHGA® TIP

The Expandix (consisting of 2 rubber bands with loops and 4 shackles) is a practical lifting aid that dampens the swinging of the Pick and Pick Max® during the release process.
