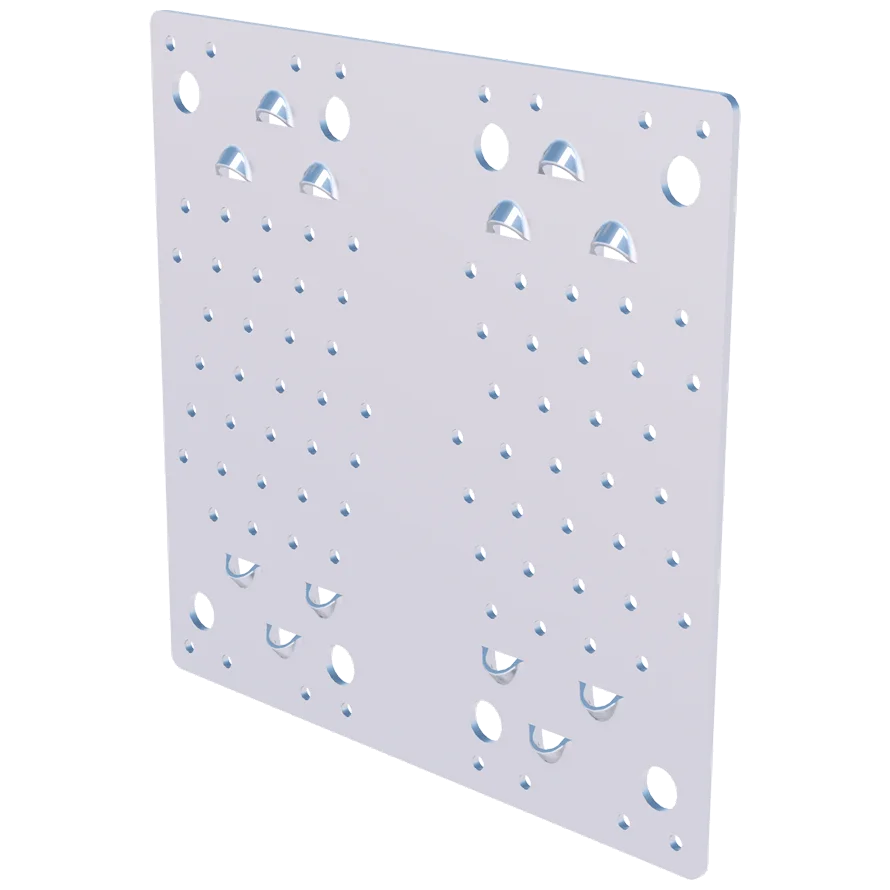

Mass-X® Shear

Advantages

• Many different areas of application
• For mounting in timber and concrete
• Very high shear carrying capacity thanks to new fastening concept
• Fewer connectors required

Instructions for use

For anchoring in timber, there are 6 angled screw holes per leg and 41 holes which are optionally provided for angle fitting screws (WBS) or anchor nails. Depending on the application, we have provided two additional partial utilisations of the fixing holes, which are also available as a type static calculation. Anchoring in concrete is done through the holes provided for this purpose (Ø 14 mm) using our BeziFix® anchor ZSS Ø 12.5 x 120 mm.

To match

GoFix® ZSS 5 x 120 mm, BeziFix® anchor ZSS Ø 12.5 x 120 mm, anchor nail and angle fitting screw
