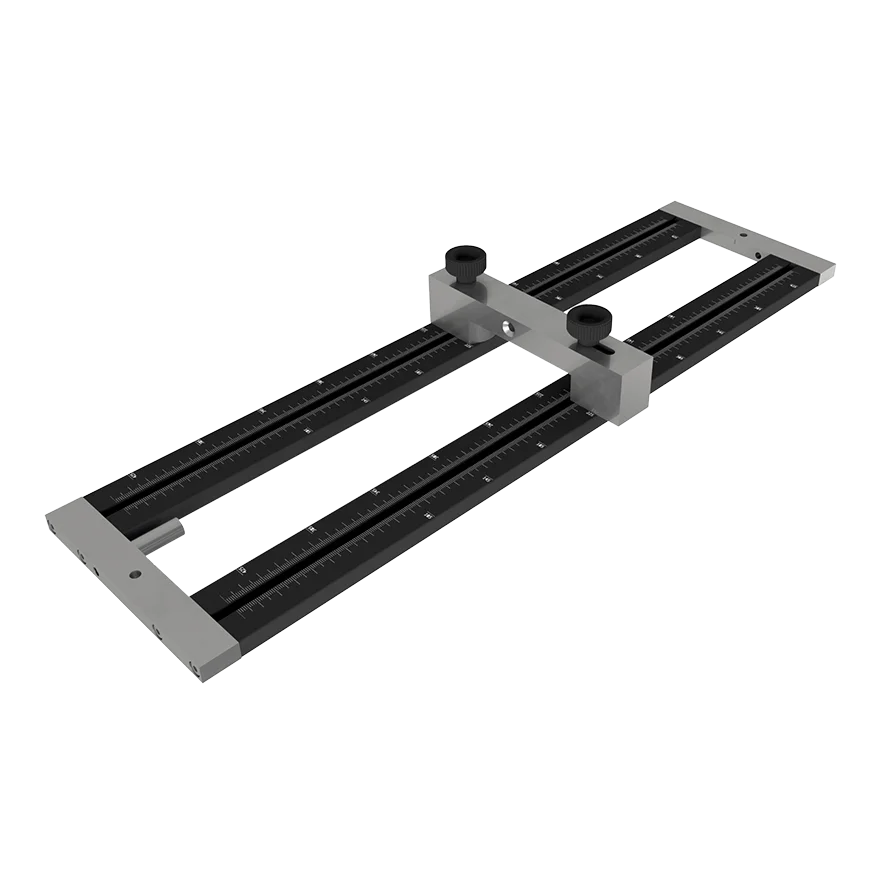

HobaFix® Max Milling Assembly Jig

View more details

Product Details

  • For all models of the HobaFix® Max. For the rational and precise assembly of HobaFix® Max on the main beam and on the secondary beam.
  • Optimal in use with HobaFix® Max milling cutter (to be purchased separately). The HobaFix® Max can be milled in one operation thanks to the coordinated cutter length and position of the thrust ring.
  • The jig stop can be continuously adjusted in height and at an angle of up to 30°. Offers maximum flexibility.
  • Developed and produced in Austria. Superlative European quality and added value.
SIHGA® TIP

In order to obtain a nice closed joint with the milled version, a milling depth of 15.5 mm is recommended. From the point of view of the secondary beam, the right-hand locking screw should be screwed in first to achieve a contraction effect. It is recommended that the first locking screw is screwed in halfway before the second screw is fully screwed in and then the first screw is finished.
